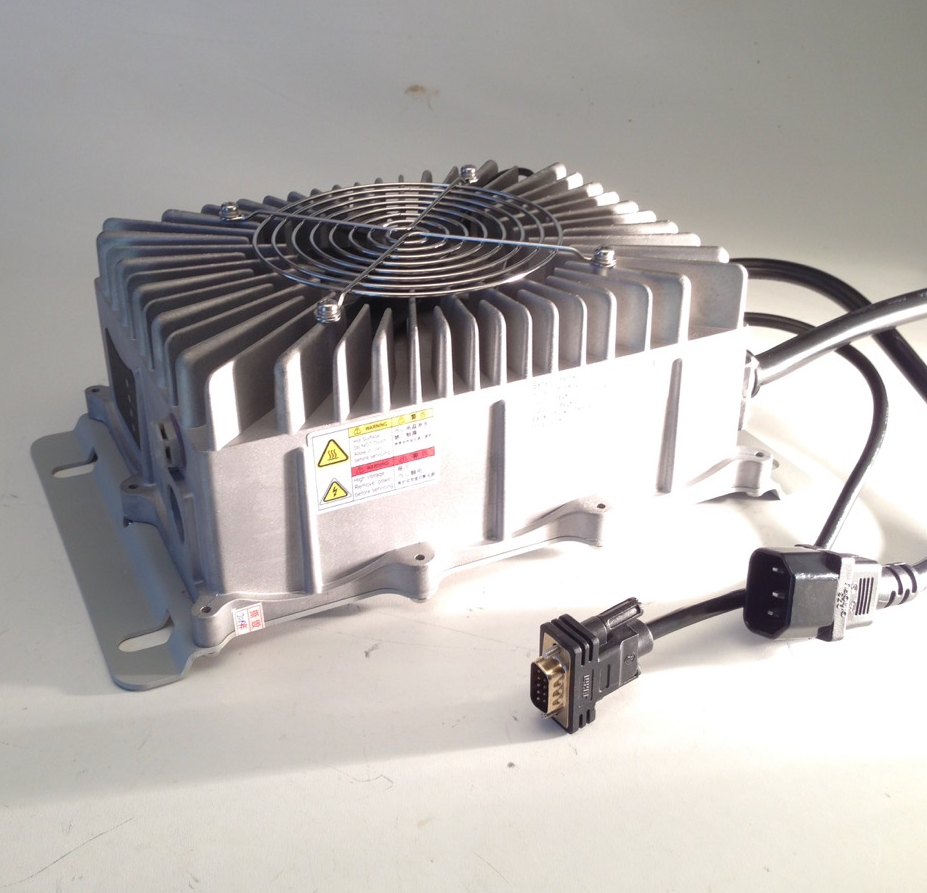

Charger 100V (max) 20A CANbus Enabled

$660.00

CHG-A-100V20A

Lithium LiFePO4 Battery Charger up to 100V peak charge voltage, up to 20 Amps.
CANbus enabled.

SKU: CHG-A-100V-20A Category: Lithium Chargers
  • Description
  • Additional information

Description

Features:
– Advanced high frequency switch mode power supply technology
– DC output isolated from AC input
– 230-250VAC input, 3 pin plug and cable included
– Requires enabling via CANbus
– Red/Green LED status indication
– Short Circuit, over voltage, over-temperature, reverse polarity protection.
– Efficiency > 85%
– 280 x 180 x 100mm
– 5kg
– Forced ventilation with fan
– 100% full load burn-in tested.
– C-Tick compliant N22214

Note: This charger requires a CANbus connection and the correct signals to operate.
Please also purchase our CANcharge Dongle if you do not have any CAN interface.

CHG-A-100V20A-CAN-protocol                     CHG-A-100V20A-drawing

Additional information

Weight 6 kg
Dimensions 40 × 30 × 20 cm
